C9130AXE-T

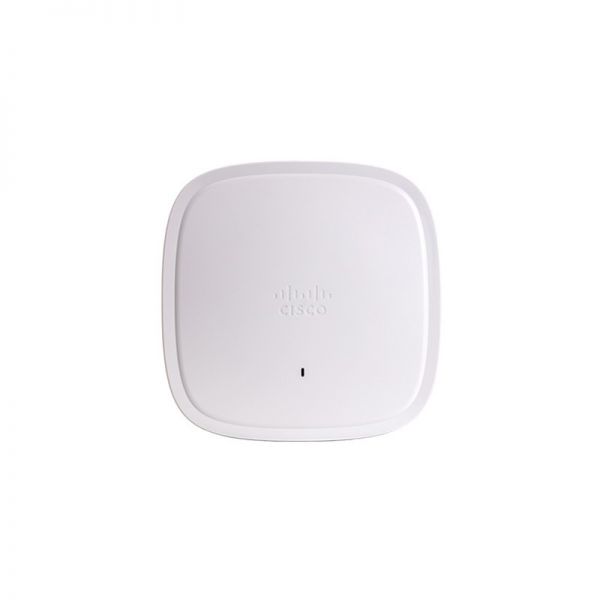

Cisco C9130AXE-T Catalyst 9130AX Series Access Points
Quantity:
ASK C9130AXE-T Price
SHOP WITH CONFIDENCE
C9130AXE-T Datasheet
| Software | Catalyst 9130AXE |
| • Cisco Unified Wireless Network Software Release 8.10MR1 or later | |
| • Cisco IOS ® XE Software Release 17.1.1 s or later | |
| Supported wireless LAN controllers | • Cisco Catalyst 9800 Series Wireless Controllers |
| • Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller | |
| 802.11n version 2.0 (and related) capabilities | • 4x4 MIMO with four spatial streams |
| • Maximal Ratio Combining (MRC) | |
| • 802.11n and 802.11a/g | |
| • 20- and 40-MHz channels | |
| • PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz) | |
| • Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive) | |
| • 802.11 Dynamic Frequency Selection (DFS) | |
| • Cyclic Shift Diversity (CSD) support | |
| 802.11ac | • 8x8 downlink MU-MIMO with eight spatial streams |
| • MRC | |
| • 802.11ac beamforming | |
| • 20-, 40-, 80-, and 160-MHz channels | |
| • PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz) | |
| • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) | |
| • 802.11 DFS | |
| • CSD support | |
| • WPA3 support | |
| 802.11ax | • 8x8 uplink/downlink MU-MIMO with eight spatial streams |
| • Uplink/downlink OFDMA | |
| • TWT | |
| • BSS coloring | |
| • MRC | |
| • 802.11ax beamforming | |
| • 20-, 40-, 80-, and 160-MHz channels | |
| • PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz) | |
| • Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive) | |
| • 802.11 DFS | |
| • CSD support | |
| • WPA3 support | |
| Integrated antenna | • 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth |
| • 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth | |
| External antenna with Smart antenna connector | • The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz) |
| • Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios | |
| • Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector | |
| • Smart antenna connector is a compact multi-RF connector with 8-DART interface | |
| • Requires the AIR-CAB002-D8-R= 2-fppt smart antenna connector when used with antennas with a RP-TNC connector | |
| • Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna | |
| Interfaces | • 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz |
| • Management console port (RJ-45) | |
| • USB 2.0 at 4.5W (enabled via future software) | |
| Indicators | • Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | • Access point (without mounting brackets): |
| - C9130AXE: 9.17 x 9.17 x 1.58 in. (23.3 x 23.3 x 4.0 cm) | |
| Environmental | Cisco Catalyst 9130AXE |
| • Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) | |
| • Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m) | |
| • Operating temperature: -4° to 122°F (-20° to 50°C) | |
| • Operating humidity: 10% to 90% (noncondensing) | |
| • Operating altitude test: 40˚C, 9843 ft.(3000 m) | |
| System memory | • 2048 MB DRAM |
| • 1024 MB flash | |
| Available transmit power settings | 2.4 GHz |
| • 23 dBm (200 mW) | |
| • 20 dBm (100 mW) | |
| • 17 dBm (50 mW) | |
| • 14 dBm (25 mW) | |
| • 11 dBm (12.5 mW) | |
| • 8 dBm (6.25 mW) | |
| • 5 dBm (3.13 mW) | |
| • 2 dBm (1.56 mW) | |
| • -1 dBm (0.79 mW) | |
| • -4 dBm(0.39 mW) | |
| 5 GHz | |
| • 26 dBm (400 mW) | |
| • 23 dBm (200 mW) | |
| • 20 dBm (100 mW) | |
| • 17 dBm (50 mW) | |
| • 14 dBm (25 mW) | |
| • 11 dBm (12.5 mW) | |
| • 8 dBm (6.25 mW) | |
| • 5 dBm (3.13 mW) | |
| • 2 dBm (1.56 mW) | |
| • -1 dBm (0.79 mW) | |
| Maximum number of nonoverlapping channels | 2.4 GHz |
| • 802.11b/g: | |
| - 20 MHz: 3 | |
| • 802.11n: | |
| - 20 MHz: 3 | |
| • 802.11ax: | |
| - 20 MHz: 3 | |
| 5 GHz | |
| • 802.11a: | |
| - 20 MHz: 26 FCC, 16 EU | |
| • 802.11n: | |
| - 20 MHz: 26 FCC, 16 EU | |
| - 40 MHz: 12 FCC, 7 EU | |
| • 802.11ac/ax: | |
| - 20 MHz: 26 FCC, 16 EU | |
| - 40 MHz: 12 FCC, 7 EU | |
| - 80 MHz: 5 FCC, 3 EU | |
| - 160 MHz 2 FCC, 1 EU | |
| Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. | |
| Compliance standards | • Safety: |
| - IEC 60950-1 | |
| - EN 60950-1 | |
| - UL 60950-1 | |
| - CAN/CSA-C22.2 No. 60950-1 | |
| - AS/NZS60950.1 | |
| - UL 2043 | |
| - Class III equipment | |
| • Emissions: | |
| - CISPR 32 (rev. 2015) | |
| - EN 55032 (rev. 2012/AC:2013) | |
| - EN 55032 (rev. 2015) | |
| - EN61000-3-2 (rev. 2014) | |
| - EN61000-3-3 (rev. 2013) | |
| -5 | |
| -6 | |
| - AS/NZS CISPR 32 Class B (rev. 2015) | |
| - 47 CFR FCC Part 15B | |
| - ICES-003 (rev. 2016 Issue 6, Class B) | |
| - VCCI-CISPR 32 | |
| - CNS (rev. 13438) | |
| - KN-32 | |
| - QCVN 118:2018/BTTTT | |
| • Immunity: | |
| - CISPR 24 (rev. 2010) | |
| - EN 55024 + AMD 1(rev. 2010) | |
| - EN 55035: 2017 | |
| 0 | |
| • Emissions and immunity: | |
| - EN 301 489-1 (v2.1.1 2017-02) | |
| - EN 301 489-17 (v3.1.1 2017-02) | |
| - QCVN (18:2014) | |
| - QCVN 112:2017/BTTTT | |
| - KN 489-1 | |
| - KN 489-17 | |
| - EN 60601-1-2:2015 | |
| - EN 61000-6-1: 2007 | |
| • Radio: | |
| - EN 300 328 (v2.1.1) | |
| - EN 301 893 (v2.1.1) | |
| - AS/NZS 4268 (rev. 2017) | |
| - 47 CFR FCC Part 15C, 15.247, 15.407 | |
| - RSP-100 | |
| - RSS-GEN | |
| - RSS-247 | |
| - China regulations SRRC | |
| - LP0002 (rev 2018.1.10) | |
| - Japan Std. 33a, Std. 66, and Std. 71 | |
| • RF safety: | |
| - EN 50385 (rev. Aug 2002) | |
| - ARPANSA | |
| - AS/NZS 2772 (rev. 2016) | |
| - EN 62209-1 (rev. 2016) | |
| - EN 62209-2 (rev. 2010) | |
| - 47 CFR Part 1.1310 and 2.1091 | |
| - RSS-102 | |
| • IEEE standards: | |
| - IEEE 802.3 | |
| - IEEE 802.3ab | |
| - IEEE 802.3af/at | |
| - IEEE 802.11a/b/g/n/ac/ax | |
| - IEEE 802.11h, 802.11d | |
| • Security: | |
| - 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3 | |
| - 802.1X | |
| - Advanced Encryption Standard (AES) | |
| • Extensible Authentication Protocol (EAP) types: | |
| - EAP-Transport Layer Security (TLS) | |
| - EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2 | |
| - Protected EAP (PEAP) v0 or EAP-MSCHAP v2 | |
| - EAP-Flexible Authentication via Secure Tunneling (EAP-FAST) | |
| - PEAP v1 or EAP-Generic Token Card (GTC) | |
| - EAP-Subscriber Identity Module (SIM) |
