FG-401E

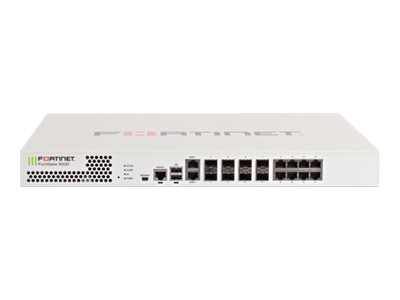

Fortinet FG-401E FortiGate 401E Security Appliance
Quantity:
ASK FG-401E Price
SHOP WITH CONFIDENCE
FG-401E Datasheet
- Product DescriptionFortinet FortiGate 401E - security appliance
- Device TypeSecurity appliance
- Form FactorRack-mountable - 1U
- ProcessorFortinet FortiASIC CP9/NP6
- Hard Drive240 GB x 2
- Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
- PerformanceFirewall throughput (1518-byte packet size): 32 Gbps ¦ Firewall throughput (512-byte packet size): 32 Gbps ¦ Firewall throughput (64-byte packet size): 24 Gbps ¦ HTTP Throughput: 12 Gbps ¦ VPN throughput (512-bit IPSec): 20 Gbps ¦ IPS throughput: 7.8 Gbps ¦ SSL inspection throughput: 4.8 Gbps ¦ VPN throughput (SSL): 4.5 Gbps ¦ Firewall latency (64-byte UDP): 3 µs ¦ Firewall throughput: 24 Mpps ¦ SSL inspection throughput: 4.8 Gbps ¦ Application control (AVC) throughput: 12 Gbps ¦ CAPWAP throughput: 14.8 Gbps ¦ Threat protection throughput: 5 Gbps
- CapacityClient to gateway IPSec VPN tunnels: 20000 ¦ Gateway to gateway IPSec VPN Tunnels: 2000 ¦ Concurrent TCP sessions: 4000000 ¦ New TCP sessions per second: 450000 ¦ Firewall policies: 10000 ¦ Concurrent SSL VPN users: 500 ¦ Virtual domains: 10 ¦ Number of FortiAP devices: 512 ¦ Number of FortiToken devices: 1000 ¦ Number of FortiClient devices: 600
- Included Accessories2 SX SFP transceivers
- PowerAC 120/230 V (50/60 Hz)
- Power RedundancyOptional
- Dimensions (WxDxH)17 in x 15 in x 1.7 in
- Weight17.42 lbs
