FP7115-K9

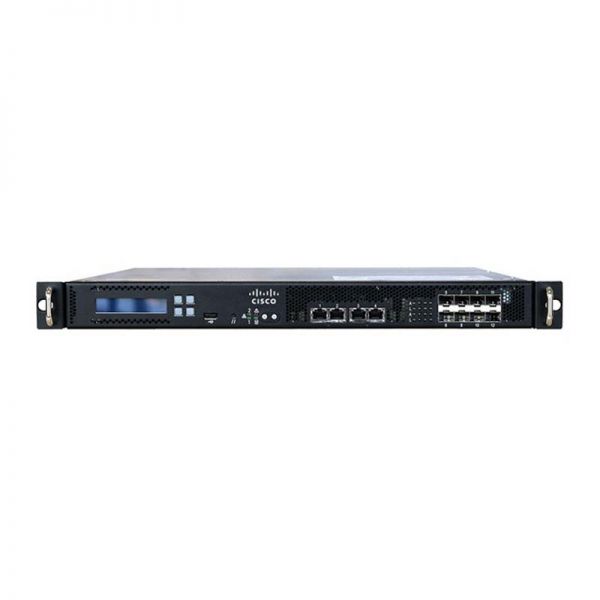

Cisco FP7115-K9 FirePOWER 7115 Security Appliance

General
Device Type	Security appliance
Height (Rack Units)	1U
Built-in Devices	Status LCD
Width	19 in
Depth	21.6 in
Height	1.7 in
Weight	29.1 lbs
Processor / Memory / Storage
RAM	16 GB
Expansion / Connectivity
Interfaces	4 x 1000Base-T - RJ-45 ¦ 8 x - SFP (mini-GBIC) ¦ 3 x USB 2.0 - Type A ¦ 1 x 1000Base-T (management) - RJ-45 ¦ 1 x VGA - HD-15 ¦ 1 x serial - DB-9
Power
Power Device	Internal power supply
Installed Qty	2
Max Supported Qty	2
Power Redundancy	Yes
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	200 Watt
Power Provided	450 Watt
Networking
Form Factor	Rack-mountable
Airflow Direction	Front to back airflow
Ports Qty	12
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Performance	IPS throughput: 750 Mbps ¦ Firewall throughput: 1.5 Gbps
Capacity	Concurrent connections: 1500000 ¦ New connections per second: 27500
Features	5 fans
Miscellaneous
Compliant Standards	RoHS
Environmental Parameters
Min Operating Temperature	41 °F
Max Operating Temperature	104 °F
Humidity Range Operating	5 - 85% (non-condensing)
