FP8360-K9

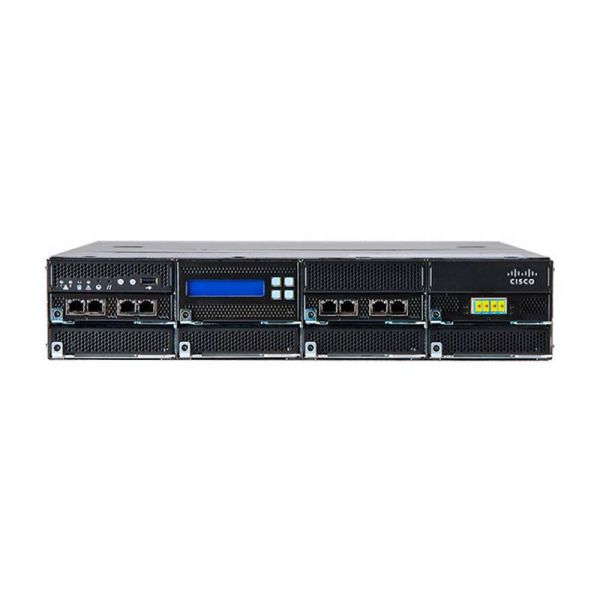

Cisco FP8360-K9 FirePOWER 8360 Security Appliance

General
Device Type	Security appliance
Height (Rack Units)	4U
Built-in Devices	Status LCD
Width	17 in
Depth	28.9 in
Height	6.9 in
Processor / Memory / Storage
RAM	256 GB
Hard Drive	SSD
Expansion / Connectivity
Expansion Slots	6 (total) / 6 (free) x expansion slot
Interfaces	1 x 1000Base-T (management) - RJ-45 ¦ 4 x USB 2.0 - Type A ¦ 1 x serial - DB-9 ¦ 1 x VGA - HD-15
Power
Power Device	Internal power supply
Installed Qty	2
Max Supported Qty	2
Power Redundancy	Yes
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	635 Watt
Power Provided	1000 Watt
Networking
Form Factor	Rack-mountable
Airflow Direction	Front to back airflow
Connectivity Technology	Wired
Performance	IPS throughput: 30 Gbps ¦ Firewall throughput: 60 Gbps
Capacity	New connections per second: 54000 ¦ Concurrent connections: 34000000 ¦ Latency: <150 µs
Features	Modular design, stackable, 12 fans
Miscellaneous
Compliant Standards	RoHS, Directive 2002/95/EC
Environmental Parameters
Min Operating Temperature	41 °F
Max Operating Temperature	104 °F
Humidity Range Operating	5 - 95%
