70DG006NUX

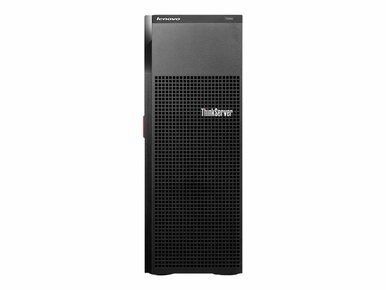

Lenovo 70DG006NUX ThinkServer TD350 70DG Server tower 4U 2 way 1 x Xeon E5-2603V4 / 1.7 GHz
Quantity:
ASK 70DG006NUX Price
SHOP WITH CONFIDENCE
70DG006NUX Datasheet
| Type | Server |
| Product Form Factor | Tower - 4U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Server Scalability | 2-way |
| Front Accessible Bays Qty | 2 |
| Hot-Swap Bays Qty | 5 |
| CPU | Intel Xeon E5-2603V4 / 1.7 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Smart Cache |
| CPU Socket | LGA2011-v3 Socket |
| Chipset Type | Intel C612 |
| Installed Size | 15 MB |
| Cache Per Processor | 15 MB |
| Technology | DDR4 SDRAM - ECC |
| Effective Memory Speed | 1866 MHz |
| Rated Memory Speed | 2400 MHz |
| Memory Specification Compliance | PC4-19200 |
| Form Factor | DIMM 288-pin |
| Slots | 16 (total) / 15 (empty) |
| Features | Registered, Memory Mirroring, Memory Sparing, mixing of different types of memory modules is not supported |
| Configuration Features | 1 x 16 GB |
| RAM Supported | 512 GB registered - ECC ¦ 1024 GB Load-Reduced - ECC |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | ThinkServer RAID 110i |
| RAID Level | RAID 0, RAID 1, RAID 10 |
| Monitor Type | None. |
| Graphics Processor | ASPEED AST2400 |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0 |
| Remote Management Controller | ThinkServer System Manager (TSM) |
| Bays | 2 (total) / 2 (free) x external 5.25" x 1/2H ¦ 5 (total) / 5 (free) x hot-swap 3.5" |
| Interfaces | 4 x USB 3.0 ¦ 1 x serial ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management - RJ-45 ¦ 2 x USB 2.0 (2 in front) |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 750 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| OS Provided | No operating system |
| Width | 9.9 in |
| Depth | 27 in |
| Height | 18.1 in |
| Weight | 48.5 lbs |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 113 °F |
| Humidity Range Operating | 20 - 80% (non-condensing) |
| Product Description | Lenovo ThinkServer TD350 - tower - Xeon E5-2603V4 1.7 GHz - 16 GB - no HDD |
| Height (Rack Units) | 4U |
| Processor | 1 x Intel Xeon E5-2603V4 / 1.7 GHz (6-core) |
| Processor Socket | LGA2011-v3 Socket |
| Cache Memory | 15 MB |
| RAM | 16 GB (installed) / 512 GB (max) - DDR4 SDRAM - ECC - PC4-19200 |
| Storage Controller | SATA (SATA 6Gb/s) (ThinkServer RAID 110i) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Graphics Controller | ASPEED AST2400 |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 9.9 in x 27 in x 18.1 in |
