605865-B21

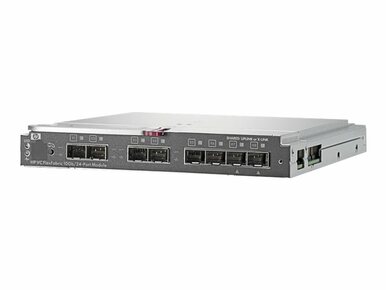

HP 605865-B21 Virtual Connect FlexFabric 10Gb/24-Port Enterprise Edition Switch managed - 16 x 1
Quantity:
ASK 605865-B21 Price
SHOP WITH CONFIDENCE
605865-B21 Datasheet
| Device Type | Switch - 24 ports - managed - stackable |
| Enclosure Type | Plug-in module |
| Subtype | 10 Gigabit Ethernet |
| Compatible Slots | 1 x expansion slot |
| Ports | 16 x 10Gb Ethernet (backplane) + 4 x 10Gb Ethernet/8Gb Fibre Channel SFP+ + 4 x 10 Gigabit Ethernet / 1 Gigabit Ethernet SFP+ |
| MAC Address Table Size | 32K entries |
| Jumbo Frame Support | 9216 bytes |
| Fibre Channel | FC-FG, FC-FLA, FC-GS, FC-GS-2, FC-GS-3, FC-PH, FC-PH-2, FC-PH-3, FC-VI, FC-BB-5 |
| Routing Protocol | IGMPv2, IGMP |
| Remote Management Protocol | SNMP 1, SNMP 2, HTTP, HTTPS, CLI |
| Encryption Algorithm | SSL |
| Features | Auto-negotiation, LDAP support, VLAN support, IGMP snooping, manageable |
| Compliant Standards | IEEE 802.2, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3aq |
| Status Indicators | Port status, link OK, module locator, link/activity |
| Interfaces | 16 x 10Gb Ethernet - backplane ¦ 4 x 10Gb Ethernet / 8Gb Fibre Channel - SFP+ ¦ 4 x 10Gb Ethernet / 1Gb Ethernet - SFP+ |
| Software Included | HP Virtual Connect Enterprise Manager (1 enclosure license) |
| Width | 10.5 in |
| Depth | 7.6 in |
| Height | 1.1 in |
| Weight | 2.8 lbs |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Designed For | HPE BLc7000 Enclosure ¦ HPE BLc7000 Enclosure Model X ¦ HPE BLc7000 Matrix with FlexFabric Expansion Kit ¦ HPE BLc7000 Single-Phas ... |
| Product Description | HPE Virtual Connect FlexFabric 10Gb/24-Port Enterprise Edition - switch - 24 ports - managed - plug-in module |
| Dimensions (WxDxH) | 10.5 in x 7.6 in x 1.1 in |
