C9200-24P-E

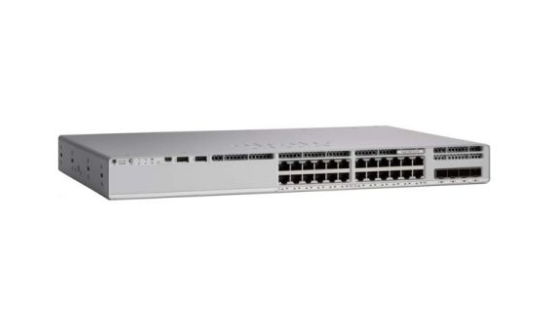

Cisco C9200-24P-E Catalyst 9200 Network Essentials Switch 24 Ports Smart Rack Mountable
Quantity:
ASK C9200-24P-E Price
SHOP WITH CONFIDENCE
C9200-24P-E Datasheet
|
General |
|
|
Device Type |
Switch - 24 ports - L3 - smart - stackable |
|
Enclosure Type |
Rack-mountable |
|
Subtype |
Gigabit Ethernet |
|
Ports |
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
|
Power Over Ethernet (PoE) |
PoE+ |
|
Performance |
Stacking bandwidth: 160 Gbps | Switching bandwidth: 128 Gbps | Forwarding rate: 190.4 Mpps |
|
Capacity |
Virtual networks: 4 | IPv4 routing table entries: 4000 | IPv6 routing table entries: 2000 | ACL scale entries: 1600 | Packet buffer size: 6 MB | VLAN IDs: 4096 | Switched virtual interfaces (SVIs): 1000 |
|
MAC Address Table Size |
32000 entries |
|
Jumbo Frame Support |
9198 bytes |
|
Routing Protocol |
OSPF, RIP-1, RIP-2, VRRP, PIM-SSM, policy-based routing (PBR), RIPng |
|
Remote Management Protocol |
NETCONF, RESTCONF |
|
Encryption Algorithm |
128-bit AES |
|
Features |
Cisco StackWise Technology, EIGRP Stub Routing, Flexible NetFlow (FNF), MACsec support, built-in ASIC, Control plane protection (CoPP), Blue Beacon LED, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, DNA support, Superior QoS |
|
Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz |
|
4 GB |
|
|
Flash Memory |
4 GB |
|
Built-in Devices |
RFID tag |
|
Expansion / Connectivity |
|
|
Interfaces |
24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W | 4 x 10GBase-X SFP+ |
|
Power |
|
|
Internal power supply - hot-plug |
|
|
Max Supported Qty |
2 |
|
Power Redundancy |
Optional |
|
Voltage Required |
AC 100-240 V (50 - 60 Hz) |
|
Miscellaneous |
|
|
MTBF |
422,310 hours |
|
Compliant Standards |
Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
|
Software / System Requirements |
|
|
Software Included |
Cisco Network Essentials |
|
Dimensions & Weight |
|
|
Width |
1.7 in |
|
Depth |
17.5 in |
|
Height |
13.8 in |
|
Weight |
12.13 lbs |
|
Environmental Parameters |
|
|
Humidity Range Operating |
5 - 90% (non-condensing) |
|
Min Storage Temperature |
-40 °F |
|
Max Storage Temperature |
158 °F |
|
Humidity Range Storage |
5 - 90% (non-condensing) |
