JG925A

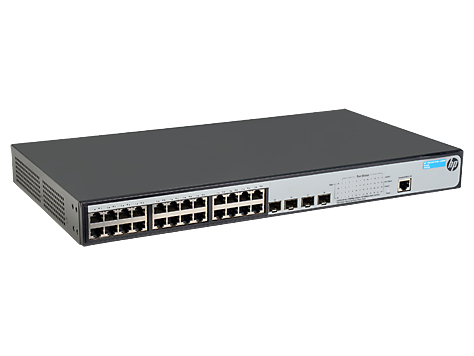

HP JG925A HPE OfficeConnect 1920 24G PoE+ (180W) Switch
Quantity:
ASK JG925A Price
SHOP WITH CONFIDENCE
JG925A Datasheet
| Rack mounting | Yes |
|---|---|
| Colour of product | Grey |
| Switch type | Managed |
| Switch layer | L3 |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| Console port | RJ-45 |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u |
| 10G support | No |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Rate limiting | Yes |
| VLAN support | Yes |
| MAC address table | 8192 entries |
| Switching capacity | 56 Gbit/s |
| Throughput | 41.7 Mpps |
| Latency (10-100 Mbps) | 5 µs |
| Latency (1 Gbps) | 5 µs |
| Packet buffer memory | 4.1 MB |
| DHCP features | DHCP server,DHCP client |
| IGMP snooping | Yes |
| Built-in processor | Yes |
| Processor model | MIPS |
| Processor frequency | 500 MHz |
| Memory type | SDRAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 235 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 180 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 440 mm |
| Depth | 238 mm |
| Height | 44 mm |
| Weight | 3.4 kg |
