TI-PG1284I

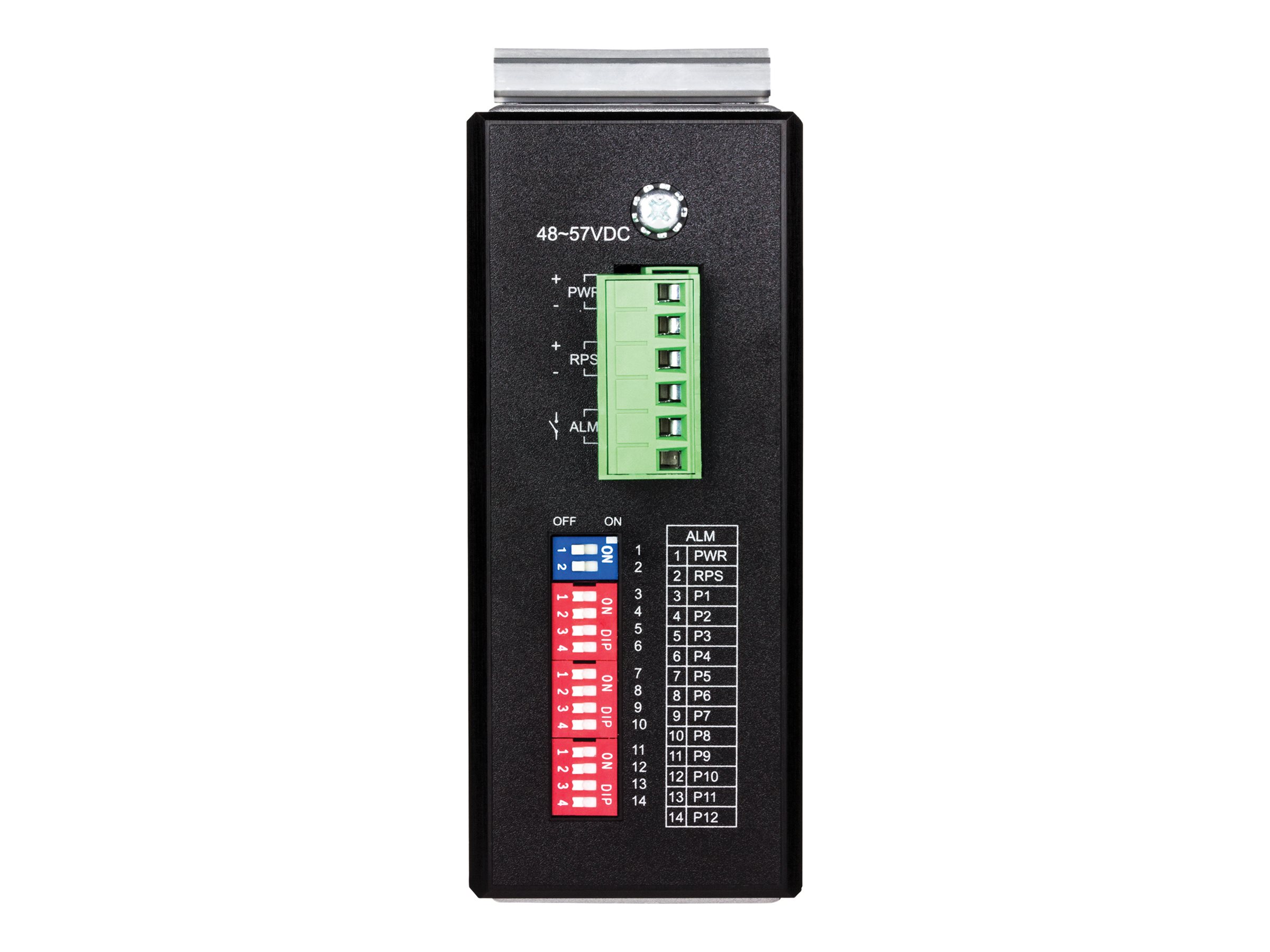

TRENDnet TI-PG1284I Switch 12 Ports Managed

Quantity:

ASK TI-PG1284I Price

SHOP WITH CONFIDENCE

TI-PG1284I Datasheet

General
Device Type	Switch - 12 ports - L2+ - managed
Enclosure Type	DIN rail mountable
Subtype	Gigabit Ethernet
Ports	8 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE)	PoE+
PoE Budget	240 W
Performance	Switching capacity: 24 Gbps \| Forwarding performance: 17.86 Mpps
MAC Address Table Size	16K entries
Jumbo Frame Support	10KB
Routing Protocol	IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, MLDv2, MLD
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI
Encryption Algorithm	SSL, MODBUS
Features	VLAN support, IGMP snooping, Syslog support, port mirroring, Weighted Round Robin (WRR) queuing, IPv6 support, half duplex mode, full duplex mode, SNTP support, surge protection, Digital Diagnostics Monitoring Interface (DDMI), Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, bandwidth control, IPv4 support, DHCP relay, IP-MAC binding, SNMP trap, Management Information Base (MIB), Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Strict Priority Queuing (SPQ), built-in DIP switch, Class of Service (CoS), auto provisioning, Loopback, 8KV ESD Protector, IGMP proxy, DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), IGMP filtering, IP source guard, ARP inspection
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, EIEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
RAM	128 MB
Expansion / Connectivity
Interfaces	8 x 1000Base-T RJ-45 PoE+ - 30 W \| 1 x console RJ-45 \| 4 x 1000Base-X SFP
Power
Power Device	External power adapter
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Power Provided	240 Watt
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	18 Watt
Miscellaneous
Cables Included	1 x console cable
MTBF	322,805 hours
Compliant Standards	FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, IEC 61000-6-2:2005
Dimensions & Weight
Width	2 in
Depth	5.2 in
Height	6.7 in
Weight	32.45 oz
Environmental Parameters
Min Operating Temperature	-40 °F
Max Operating Temperature	167 °F
Humidity Range Operating	0 - 95% (non-condensing)

Networking and Communication
